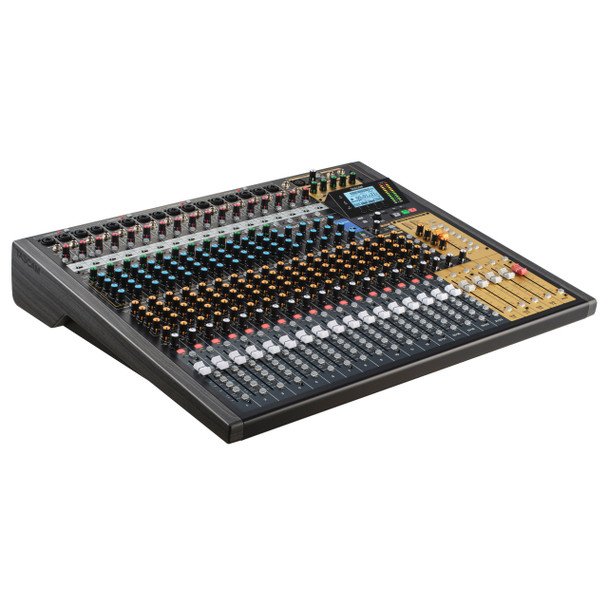

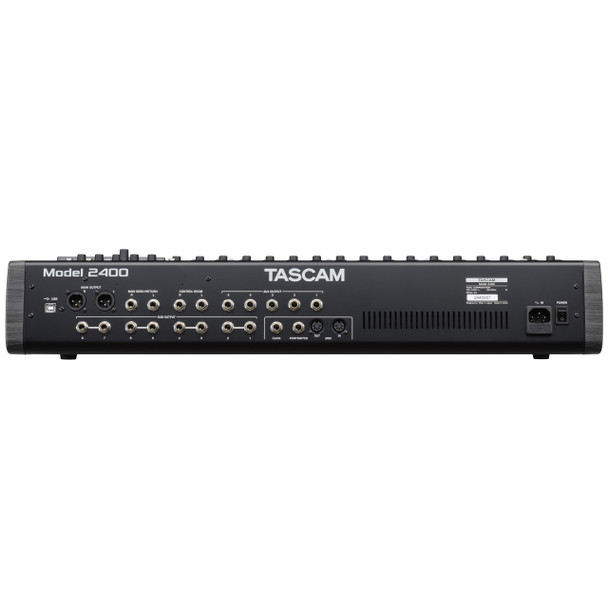

Tascam Model 2400 Mixing Console, Multitrack Recorder & USB Interface

22 channels, 24 tracks, one solution - from performance to recording, Model 2400 re-defines what you can do with a studio recording and live mixing console.

Main Features

• 24-track multitrack recorder using SDXC SD card (punch-in/out supported)
• 24 in / 22 out USB audio interface
• 22 analog input channel modules with 16 XLR Mic Pre-amps, utilizing TASCAM ultra HDDA Mic Pre-amp technologies and a one knob compressor (Ch 1-12)
• Equipped with input inserts (SEND/RETURN) on channels 1 - 12
• 5 Aux (4 Aux plus internal FX) sends, 4 stereo sub group and Main L/R
• MIDI in/out allows USB MIDI interface and MIDI sync, ¼" audio click output with tempo control
• DAW transport control and REC READY control via HUI/MCU
• Dedicated Settings Panel application with Meter bridge

Specifications

• Recording Media / File Systems: SD / FAT16, SDHC / FAT32, SDXC (up to 512 GB) / exFAT
• Recording File Format: WAV(BWF)
• Playback Format: WAV(BWF)
• Sampling Rate: 44.1k / 48k Hz
• Quantization Bit Depth: 16 / 24 bit
• Maximum Number of Recording Tracks: 24 (22 channel inputs + 2 stereo mix)

MIC Input Jacks Channels 1 - 12, 13, 15, 17, 19

• Connectors: XLR / TRS combo jack type
• XLR (1: GND, 2: HOT, 3: COLD)
• Maximum Input Level: +10dBu (at LEVEL “MIN”)
• Nominal Input Level: -8dBu (at LEVEL “MIN”)
• Minimum Input Level: -58dBu (at LEVEL “MAX”)
• Gain Adjustable Range: 0 to 50 dB
• Input Impedance: 1.9kΩ (CH 1 - 12), 2.4kΩ(CH 13 - 19)
• Phantom Power Supply: +48V *On / Off for every 4 channels

LINE (TRS) jacks Channels 1 - 22

• Connectors: XLR / TRS combo jack type 6.3mm standard TRS jack (balanced) (Tip: HOT, Ring: COLD, Sleeve: GND)
• Maximum Input Level: +22dBu
• Nominal Input Level: +4dBu
• Gain Adjustable Range: -10 to +40 dB(CH 1 - 12), -20 to +30 dB (CH 13 / 14 to 19 / 20), Fixed (CH 21 / 22)
• Input Impedance: 22kΩ (mono), 11kΩ (stereo)

INST Input (TRS) Jacks *When INST on Channels 1-2

• Connectors: XLR / TRS combo jack type 6.3mm standard TS jack equivalent (unbalanced) (Tip: HOT, Ring: GND, Sleeve: GND)
• Maximum Input Level: +19.8dBV
• Nominal Input Level: 1.8dBV
• Gain Adjustable Range: -10 to +40 dB
• Input Impedance: 1MΩ

INSERT (TRS) Jacks Channels 1 - 12

• Connectors: 6.3mm standard TRS jacks (unbalanced) (Tip: SEND, Ring: RETURN, Sleeve: GND)
• RETURN: Maximum Input Level: +18dBu, Nominal Input Level: +0dBu, Input Impedance: 15kΩ
• SEND: Maximum Input Level: +18dBu, Nominal Input Level: +0dBu, Input Impedance: 100Ω

MAIN SEND/RETURN (TRS) Jacks: MAIN L / R

• Connectors: 6.3mm standard TRS jacks (unbalanced) (Tip: SEND, Ring: RETURN, Sleeve: GND)
• RETURN: Maximum Input Level: +18dBu, Nominal Input Level: +0dBu, Input Impedance: 9kΩ
• SEND: Maximum Input Level: +18dBu, Nominal Input Level: +0dBu, Input Impedance: 100Ω

TALKBACK Mic Input Jack

• Connectors: XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD)
• Maximum Input Level: -22dBu (at LEVEL “MIN”)
• Minimum Input Level: -65dBu (at LEVEL “MAX”)
• Gain Adjustable Range: 52dB
• Input Impedance: 2.6kΩ

Analog Audio Output Ratings

MAIN OUTPUT L / R (balanced) Connectors

• Connectors: XLR 3-32 equivalent (1: GND, 2: HOT, 3: COLD)
• Maximum Output Level: +22dBu
• Nominal Output Level: +4dBu
• Output Impedance: 200Ω

CONTROL ROOM OUT L / R (pseudo-balanced) Jacks

• Connectors: 6.3mm standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
• Maximum Output Level: +16dBu
• Nominal Output Level: -2dBu
• Output Impedance: 200Ω

AUX OUTPUT 1 - 5 (pseudo-balanced) Jacks

• Connectors: 6.3mm standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
• Maximum Output Level: +16dBu
• Nominal Output Level: -2dBu
• Output Impedance: 200Ω

SUB OUTPUT 1 - 8 (pseudo-balanced) Jacks

• Connectors: 6.3mm standard TRS jacks (Tip: HOT, Ring: COLD, Sleeve: GND)
• Maximum Output Level: +16dBu
• Nominal Output Level: -2dBu
• Output Impedance: 200Ω

PHONES 1 / 2 Jack

• Connectors: 6.3mm standard stereo jack
• Maximum Output Level: 80 mW + 80 mW (32Ω load)
• Recommended Headphone Impedance: 16 to 600 Ω

Other Ratings

CLICK out (pseudo-balanced)

• Connectors: 6.3mm standard TRS jack (Tip: HOT, Ring: COLD, Sleeve: GND) * Metronome click output

MIDI

• Connectors: 5-pin DIN
• Format: MIDI 1.0

USB

• Connector: USB Type-B
• Transfer format: Mass storage class, USB audio class 2.0 (USB class compliant)

USB Audio

• Sampling Rate: 44.1k / 48k Hz
• Quantization Bit Depth: 24-bit
• Number of Inputs: 24 channels *Output from this unit
• Number of Outputs: 22 channels *Input to this unit

Input Channel EQ (Analog) Channel 1 - 12

• Low Cut: 100Hz, -18dB/Oct.
• High Shelf: +/-15dB, 10kHz cutoff frequency
• Mid Peaking: +/-15dB, 100 to 8 kHz, Q:0.55 fixed
• Low shelf: +/-15dB, 80Hz cutoff frequency

Input Channel EQ (Analog) Channel 13 - 20

• Low Cut: 100Hz, -18dB/Oct.
• High Shelf: +/-15dB, 10kHz cutoff frequency
• Mid Peaking: +/-15dB, 2.5kHz Center frequency, Q:0.55 fixed
• Low shelf: +/-15dB, 80Hz cutoff frequency

Master Section EQ (Digital)

• High Shelf: +/-12dB, 1.7k – 18k Hz
• High Mid: +/-12dB, 32 – 18k Hz, Q 0.1 – 17.31
• Low Mid: +/-12dB, 32 – 18k Hz, Q 0.1 – 17.31
• Low Shelf: +/-12dB, 32 – 1.6k Hz

Master Section COMP (Digital)

• Threshold: -32 to 0 dB
• Ratio: 1:1 to ∞:1
• Attack: 2 to 200 ms
• Release: 10 to 1000 ms
• Make-up: 0 to 20 dB

General Specifications

Power: AC 100 to 240V, 50 / 60 Hz Power Consumption: 65W Weight: 14.0kg Dimensions With Side Panels: 680.5(W) x 132.5(H) x 568.0(D) mm (Including protrusions) Dimensions Without Side Panels: 638.5(W) x 132.5(H) x 568.0(D) mm (Including protrusions) Operating Temperature: 0 to 40˚C Included Items: Model 2400 x1, Power cord x1, Startup guide (including warranty) x1, TASCAM ID registration guide x1

Audio Performance

• Frequency Response: 20Hz to 30kHz ANALOG (+0.5 / -1.0 dB, MIC IN to MAIN OUT), 20Hz to 20kHz DIGITAL via MTR (+0.5 / -1.0 dB, MIC IN to MAIN OUT)
• Residual Output Noise: -100dBu (MAIN OUT, MAIN mix off, All faders : min)
• Equivalent Input Noise: -128dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max, A-weighted)
• Total Harmonic Distortion: 0.003% (MIC IN to MAIN OUT, nominal input level, +2dBu, 1kHz, GAIN min.)
• Crosstalk: -80dB, between channels (1kHz, BPF)
• Maximum Gain: 74dB (MIC to MAIN OUT), 54dB (MIC to INSERT OUT), 74dB (MIC to SUB OUT), 75dB (MIC to AUX ½ OUT), 24dB (USB/SD to MAIN OUT) (EQ flatten, PAN fully counter clockwise / fully clockwise)
