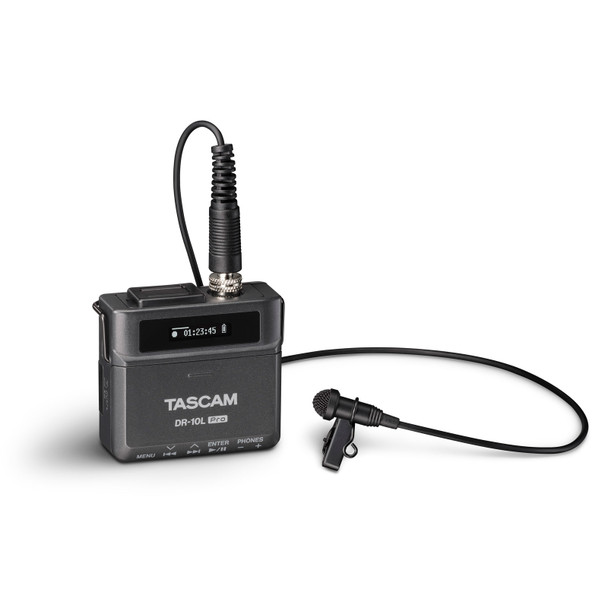

Tascam DR-10L/Pro 32-Bit Float Audio Recorder With Lavalier Microphone

Videographers love the Tascam DR-10L Pro portable recorder with clip-on microphone as an easy and unobtrusive solution for capturing audio for video. Combining the clip-on convenience of a lavalier microphone with an ultra-compact portable recorder, this form factor solves many of the problems content creators often face. It's a superior solution for busy events such as weddings and on-location film shoots.

While traditional wireless microphone systems can pose workflow concerns, the rock-solid performance of a Tascam wired lavalier recorder is proven and assured. Simple plug-and-go operation also makes the DR-10L Pro an easy backup system for your typical voice recording setup.

The DR-10L Pro's 32-bit float recording technology lets you capture a whisper, a scream and everything in between with impeccable fidelity, ultra-low noise and no need to fine-tune gain levels. Support for wireless timecode sync with Atomos products, the ability to wirelessly control up to five recorders from the app*, plus long battery life and generous storage capacity make the DR-10L Pro ideal for professional applications.

**Specifications**

**Storage media and file formats**

- Recording media: microSD card (64 MB – 2 GB), microSDHC card (4–32 GB), microSDXC card (64–512 GB)
- Recording and playback formats: WAV: mono/poly (BWF format), 44.1/48 kHz, 16-bit, 24-bit, 32-bit float, MP3: 44.1/48 kHz, 128/192 kbit/s (recording) 32–320 kbit/s (playback)

**Analogue audio inputs and outputs**

- Microphone input: 3.5-mm mini TRS jack (with screw lock)
- Maximum input level: –11 dBu
- Gain range: 7.5–38 dB
- Input impedance: ≥2 kΩ
- Included microphone: TM-10L
- Sensitivity: –42 dBV/Pa
- Maximum sound pressure level: 115 dB SPL
- Supply voltage: 2.3 V
- Analogue output (Headphones jack): 3.5-mm mini stereo jack (dual mono audio output)
- Maximum output power: 10 mW + 10 mW (THD ≤0.1 %, 32 Ω)

**Audio performance**

- Frequency response (input to recorded data): 20 Hz – 20 kHz, +0/–1 dB
- Distortion: 0.01 % (1 kHz, input level –21 dBV)
- Dynamic range: ≥105 dB

**Power supply and other specifications**

- Power supply: 2 AAA batteries (alkaline, NiMH or lithium rechargeable, sold separately)
- USB bus power from a computer
- Power consumption (batteries): 0.3 W (maximum)
- Current consumption (USB bus power): 0.1 A (maximum)
- Dimensions (W × H × D): 53 mm × 51 mm × 21 mm (excluding protrusions)
- Weight: 65 g (with batteries), 43 g (without batteries)
- Permissible operating temperature range: 0–40 °C

**Battery operation time**

- Conditions: WAV recording at 48 kHz, 32-bit float, mic connected, headphones not connected, limiter off, mono file, continuous operation, in hours:minutes (JEITA CP-2905)
- Alkaline battery (Evolta): No Bluetooth connection: 16:30, Bluetooth connection: 16:00
- NiMH battery (Eneloop): No Bluetooth connection: 11:30, Bluetooth connection: 10:30
- Lithium battery (Energizer Ultimate Lithium): No Bluetooth connection: 24:30, Bluetooth connection: 23:00
