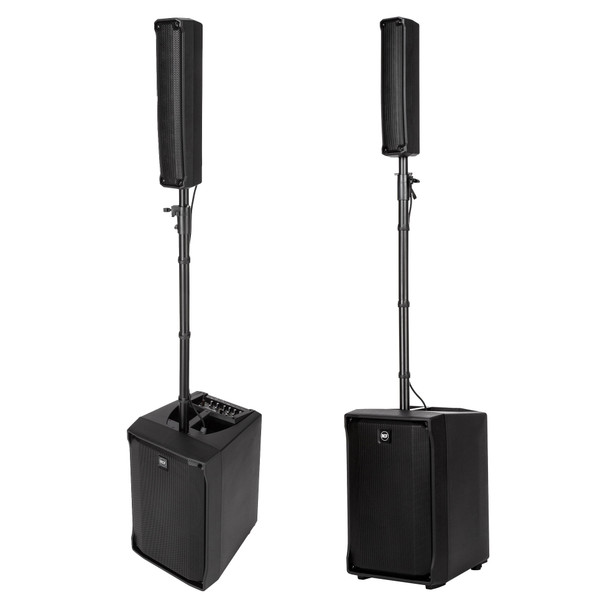

RCF Evox J8Mix and J8 Active Two Way Array System Bundle

Package consists of:

• 1 x RCF Evox J8Mix Active Two Way Array PA System with built-in Digital Mixer, Black
• 1 x RCF Evox J8 Active Two Way Array PA System, Black

RCF Evox J8Mix Active Two Way Array PA System with built-in Digital Mixer, Black
The RCF JMIX8 features a line source satellite module with eight 2 inch full-range drivers paired with a high-powered 12 inch woofer in a bass reflex enclosure togther with an 8 input digital mixer.Taking the EVOX J8 one step further, RCF has added an 8-input Digital Mixer to the system. The onboard processing power of the innovative Z.CORE DSP provides not only full mix functions, it includes high-quality instrument FX and AMP simulations. An EVOX iOS/Android-compatible app allows to manage the JMIX8. Adding Bluetooth audio and Hi-Z instrument input,the EVOX JMIX8 combines the quality and reliability of RCF transducers and amplification with a powerful remote controllable 8-channel digital mixer.

Professional Digital Mixer
All the available functions on the EVOX JMIX8 system integrated mixer can be managed from the operating panel. The select buttons: INPUT, OUTPUT, HOME, SYSTEM, MFX, FX give access to all the parameter pages on the LCD display.

Dynamic Compressor
MIC/LINE inputs 1 to 4 are provided with a single control dynamic compressor. The control slider acts on the amount of compressor intervention. A dedicated button toggles the compressor ON and OFF. Up to 6 different presets can be selected from the Compressor Model list: Light, Heavy, Vocal, Bass, Acoustic, and Drum.

Main Channel
A 7-band graphic EQ on the Main Channel lets you shape the frequency response of the system. In order to have a powerful overall sound, limiting peaks and more harmonics, four mastering processing presets can be selected: MASTERING, MASTER BOOST, LOUD & PROUD, and HI-FI.

Guitar Amps And Cabinets Included
The line input 4 can be switched to a Hi-Z mode and host several realistic amp modelling simulators. Guitar and Bass players can count on a whole range of 15 realistic emulations tuned for the maximum reality: Darkface ‘65, Jazz C, Rock'64, Rock 800 Crunch, Rock 900 Lead, Top30, Modern, Bassamp, Bassmate, Markbass 1, Markbass 2, Slo 88 Crunch, Slo 88 Lead, Overange 120, Heavy 51 and others. Shape the sound of each amp via 4 different parameters, store it in the Preset memory and recall via EVOX App, Panel, or Footswitch. A wide range of integrated sound options at your fingertips.

MFX
A whole range of easy-to-use effects helps the musician to find the right sound in any song: chorus, tremolo and flanger on the modulation effects unit, plus a useful delay for musical instruments.

Tons Of Effects
80 High Quality effects presets from the premium RCF Z.CORE.DSP, each with three parameter controls: 40 different reverbs, providing a realistic simulation of large spaces, such as halls, rooms or hardware reverbs, 20 different delay types, 20 modulation effects to shape any nuance of your music.

Evox App
The RCF EVOX App ensures a comprehensive control of J Series mixers: all the processing you need, on your smartphone, via Bluetooth. Featuring attractive and intuitive graphics created by audio professionals, the app allows you to navigate between pages and fully control the mixer’s parameters even while playing. RCF EVOX J The EVOX App is available for iOS and Android operating systems.

Superior Transducers
The ultra-compact full-range 2 inch RCF drivers are capable of handling high SPL and power with a stunning sound performance. The high excursion 12 inch RCF woofer extends to the lowest frequencies offering quick and precise punch. The bass-reflex port design avoids air turbulence reducing distortions. The EVOX design features constant directivity coverage of 120 degrees x 30 degrees (HxV),providing a perfect coverage pattern. The vertical array is progressively shaped to guarantee consistent sound coverage from the first row to the last.

Electronics
Integrated amplifier DSP manages full loudspeaker processing, FiRPHASE filters, crossover and EQ, soft limiter, and dynamic bass boost. Class-D power amplifier technology packs huge performance, operating with high efficiency into a lightweight solution. The robust mechanical aluminium structure of the amplifier strengthens the unit during transportation and provides fanless heat dissipation.

FiRPHASE
Thanks to FiRPHASE, a proprietary and advanced FIR filtering technology, the EVOX system provides more transparency of the original input signal with absolute clarity. The FiRPHASE algorithm optimises dynamics, amplitude and phase patterns, while at the same time ensuring minimum system latency for improved sound performance.

Bring Evox With You
The sturdy, ergonomic cabinet is easy to carry, thanks to the handle at the top and the practical bag. Each subwoofer includes a steel pole socket for the array. Stability and safety are assured. The satellite module slides easily into the rear of the subwoofer for compact transportation. Internal structure reinforcements prevent any damage of the cabinet. Cabinets are moulded on a special polypropylene composite material designed to dampen down unwanted vibrations.

RCF Evox JMIX8 Specifications

Acoustic Specifications

• Frequency Response -3 dB: 40 Hz ÷ 20 Hz
• Max SPL: 128 dB
• Horizontal coverage angle: 120°
• Vertical coverage angle: 30°
• Fullrange: 8 x 2.0 inch, 1.0 inch v.c
• Woofer: 12 inch, 2.5 inch v.c

Input/Output Section

• Input signal: Balanced/Unbalanced
• Input connectors: XRL, Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu

Processor Section

• Crossover frequencies: 220 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Volume, Boost, Mic/Line

Amplifier Specifications

• Total power: 1400 W PEAK
• High frequencies: 400 W PEAK
• Low frequencies: 1000 W PEAK
• Total power: 700 W RMS
• High frequencies: 200 W RMS
• Low frequencies: 500 W RMS
• Connections: Convection

Cabinet

• Cabinet Material: PP Composite
• Handles: 1 Top
• Pole Mount/Cap: Yes
• Grille: Steel
• Colour: Black, White

Physical Specifications

• Height: 623 mm / 24.53 inch
• Width: 400 mm / 15.75 inch
• Depth: 460 mm / 18.11inch
• Net Weight: 24.4 Kg / 53.79 lbs

RCF Evox J8 Active Two Way Array PA System, Black
The RCF J8 features a line source satellite module with eight 2 inch full-range drivers paired with a high-powered 12 inch woofer in a bass reflex enclosure.The incredibly powerful J series alters the landscape of portable PA once again. The system features a line source satellite module with eight 2 inch full-range drivers paired with a high-powered 12 inch woofer in a bass reflex enclosure. All powered by on-board 1400‑watt Class-D amplification. The EVOX J Series maintains a similar footprint to the original EVOX systems, now in a portable composite enclosure. The system offers stunning sound performance with crystal clear vocal reproduction and unparalleled musical response. This makes the RCF EVOX the smart choice for live entertainment, DJs, parties, club music and corporate events.

Superior Transducers
The ultra-compact full-range 2 inch RCF drivers are capable of handling high SPL and power with a stunning sound performance. The high excursion 12 inch RCF woofer extends to the lowest frequencies offering quick and precise punch. The bass-reflex port design avoids air turbulence reducing distortions. The EVOX design features constant directivity coverage of 120 degrees x 30 degrees (HxV),providing a perfect coverage pattern. The vertical array is progressively shaped to guarantee consistent sound coverage from the first row to the last.

Electronics
Integrated amplifier DSP manages full loudspeaker processing, FiRPHASE filters, crossover and EQ, soft limiter, and dynamic bass boost. Class-D power amplifier technology packs huge performance, operating with high efficiency into a lightweight solution. The robust mechanical aluminium structure of the amplifier strengthens the unit during transportation and provides fanless heat dissipation.

FiRPHASE
Thanks to FiRPHASE, a proprietary and advanced FIR filtering technology, the EVOX system provides more transparency of the original input signal with absolute clarity. The FiRPHASE algorithm optimises dynamics, amplitude and phase patterns, while at the same time ensuring minimum system latency for improved sound performance.

Bring Evox With You
The sturdy, ergonomic cabinet is easy to carry, thanks to the handle at the top and the practical bag. Each subwoofer includes a steel pole socket for the array. Stability and safety are assured. The satellite module slides easily into the rear of the subwoofer for compact transportation. Internal structure reinforcements prevent any damage of the cabinet. Cabinets are moulded on a special polypropylene composite material designed to dampen down unwanted vibrations.

RCF Evox J8 Specifications

Acoustic Specifications

• Frequency Response -3 dB: 40 Hz ÷ 20 Hz
• Max SPL: 128 dB
• Horizontal coverage angle: 120°
• Vertical coverage angle: 30°
• Fullrange: 8 x 2.0 inch, 1.0 inch v.c
• Woofer: 12 inch, 2.5 inch v.c

Input/Output Section

• Input signal: Balanced/Unbalanced
• Input connectors: XRL, Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu

Processor Section

• Crossover frequencies: 220 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Volume, Boost, Mic/Line

Amplifier Specifications

• Total power: 1400 W PEAK
• High frequencies: 400 W PEAK
• Low frequencies: 1000 W PEAK
• Total power: 700 W RMS
• High frequencies: 200 W RMS
• Low frequencies: 500 W RMS
• Connections: Convection

Cabinet

• Cabinet Material: PP Composite
• Handles: 1 Top
• Pole Mount/Cap: Yes
• Grille: Steel
• Colour: Black, White

Physical Specifications

• Height: 623 mm / 24.53 inch
• Width: 400 mm / 15.75 inch
• Depth: 460 mm / 18.11inch
• Net Weight: 23.8 Kg / 52.47 lbs
