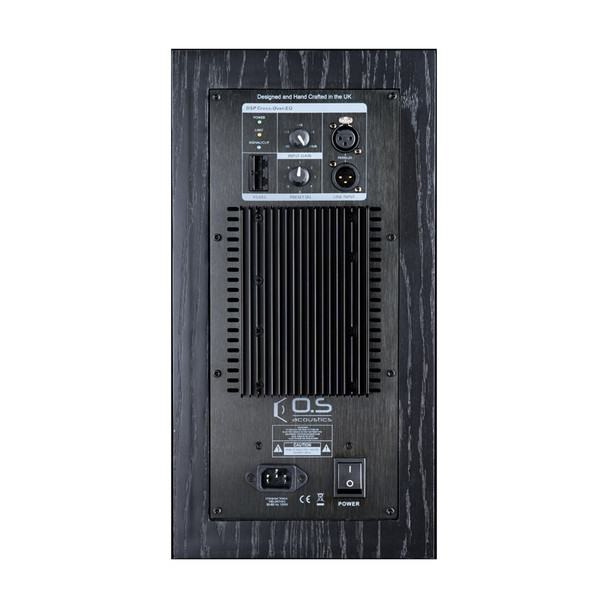

OS Acoustics DB7 2-way Active Studio Monitor (Single)

Main Features

• Extremely linear frequency response
• High fidelity, ceramic coated magnesium and aluminium drive units
• Powerful, Ultra audiophile class-D amplification
• Low crossover point for improved imaging
• Advanced DSP, dual voiced with 8 presets
• FEM optimised, deep and heavily braced enclosure for extended low-frequency response
• High quality 24-bit 96kHz Cirrus Logic AD/DA converters

Take your monitoring experience to completely new levels and get closer to the performance with the OS Acoustics DB7.

The OS Acoustics DB7 is a high-precision reference studio monitor offering exceptional frequency response and time domain coherency. Ultra rigid, high-fidelity drive units operate in pistonic motion throughout the working frequency range, lowering distortion and maintaining harmonic purity.

Powered by the best class-D amplifiers on the market and offering unequalled sonic performance and huge power reserves, the DB7 delivers a breathtaking performance that is clean, dynamic, open and articulate.

The DB7 was designed with a philosophy of 'The whole is greater than the sum of its parts'. Surely then, by using the best components available we could create something very special. The result is a true reference monitor, featuring a highly linear frequency response and advanced phase correction algorithm for natural time coherency, delivering absolute clarity and lifelike stereo imaging. The DB7 is perfect for any audio work where a high level of accuracy is required, including Mixing, Mastering, Broadcast, Film, TV and any other application where an absolute reference is required.

Ceramic coated magnesium is a near perfect tweeter diaphragm material, damping unwanted resonances with an incredibly low moving mass of only 0.2 Grams. Powered by a 150W RMS amplifier which gives an incredibly fast, highly accurate and well-controlled impulse. Transient response is further improved by properly time aligning the total system phase response, compensating for the drivers minimum phase characteristic, improving natural timbre, restoring time coherency and lowering listening fatigue.

The cabinet has been subjected to a meticulous study in Comsol multiphysics leading Finite Element Analysis software. A complex latticework of bracing has significantly reduced cabinet resonances, with front baffle vibrations being more than halved. The low-frequency driver is held rigid by significant bracing supports across four of its axes, stopping any twisting or rocking motion, revealing more subtle nuances and even more micro-dynamics. The cabinets are highly repeatable, cut to very fine tolerances with computerised numerical control machining. Finished in a beautiful veneered black oak.

The onboard DSP module offers a selection of 8 presets. Choose from critically flat or voiced, each with the option to enable or disable the FIR phase correction filter. Finally, for smaller rooms, you can also choose to apply the same presets with a small-room boundary correction, which counteracts the effects of local boundary reinforcements in the low frequencies.

The class-D T-Pro2 amplifier module offers unequalled audiophile specifications. Incredible power reserves and high damping factor ensuring fast, tight control of dynamics and bass transients. Configured to comply with ErP (1275/2008/EC) and Energy Star directives, using less than 0.5 watts in standby mode. Intelligent Standby Signal Processing in the DSP initiates standby mode when no signal has been detected for a period of 15 minutes, when activated the amplifier power consumption is typically reduced to 0.2 watts. The amplifier automatically exits standby mode as soon as a signal is redetected, typically waking up in 660 milliseconds without audible pops and clicks inherent in other designs.


Technical Specification

Frequency Response
40 Hz – 20 kHz (±2 dB > 65Hz)

Performance Consistency
Matched to within 0.5 dB

Design Principle
2-Way Front Ported Bass Reflex

Tweeter
1” Ceramic Coated Magnesium

Woofer
6.5” Aluminium

Crossover
2.1 kHz

Phase Tolerances
± 15° (200 Hz – 20 kHz)

THD (90 dB SPL at 1m)
Less than 1% (75 Hz – 20 kHz)

Max SPL
105 dB

Dimensions (HxWxD)
403 x 208 x 437 mm

Weight
11.80 kg

Amplifier
Class-D UMAC™ with ultra low distortion

Power
500W + 150W (RMS)

Signal To Noise-Ratio
>120 dB (A-weighted, 20 Hz – 20 kHz)

THD+N (Typical use)
<0.05 % (3 dB below rated power)

Power Supply
UREC™ Universal mains switch mode with Power Factor Correction

Operation Voltage
Universal Mains, 85-265V, IEC

Standby Signal Processing
Energy Star and ErP compliant

Digital Conversion
24-bit, 96 kHz Cirrus Logic

Analogue Input
Balanced XLR

DSP Presets
8
