ART DJ PRE II Phono Preamp with RIAA EQ

Main Features

• High accuracy/low noise preamp
• Switchable low cut rumble filter
• Variable preamp gain
• Signal present/clip indicator
• Selectable cartridge loading
• RCA preamp outputs

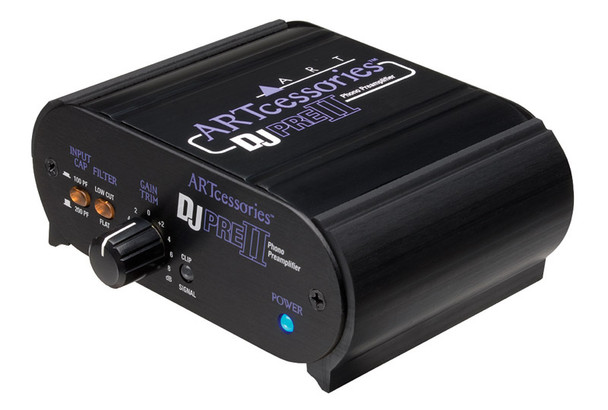

The ART DJ PRE II (formerly named the 'Phono MicroPRE') acts as an interface between your turntable and your audio recording / playback system.


The analogue input capacitance can be switched between 100pF and 200pF to optimise your phono cartridge response. A switchable low cut filter removes turntable rumble while leaving the audio pristine. The front gain trim control and signal/clip LED allow you to optimise the preamp's gain for a wide range of input sources. The built-in low noise phono preamp circuitry is highly accurate and precisely conforms to the RIAA standard. The line output jacks are low impedance and can be used with any sound card.

Housed in an all aluminium black anodised case, the DJ PRE II can be powered by a wide variety of external supplies. If you need to amplify and EQ your vinyl records to interface with your audio workstation, sound card, home stereo system or main monitor system, the DJ PRE II gives you flawless audio reproduction in a rugged and reliable package.


ART DJPRE II Specifications

Frequency Response: 10Hz -50KHz, +/-.5dB
Phono EQ Standard: Conforms to RIAA Curve
Total Harmonic Distortion: .01% Typical @ 1kHz
Hum and Noise: > 90dB below clipping
Input Impedance: 47k Ohms in Parallel with Either 100pF or 200pF
Maximum Input Level: 40mVrms @1kHz
Maximum Gain: 45dB @1KHz

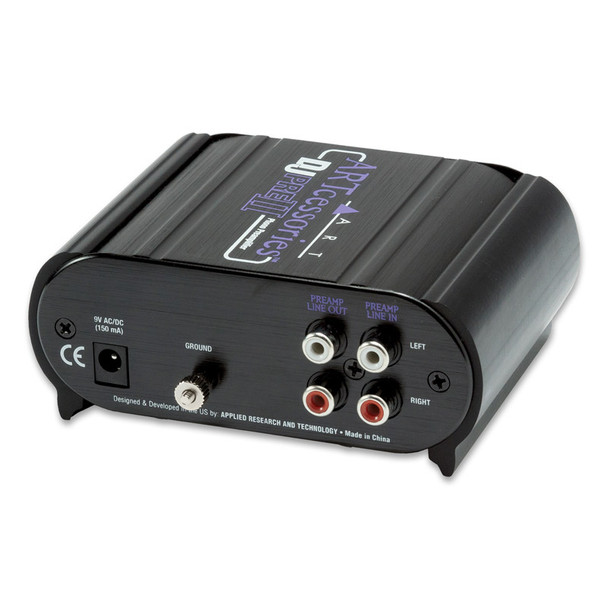

In / Out Connections: RCA
Maximum Output Level: +6dBu (1.4Vrms)
Filter Type/Response: Switchable, Low Cut,-3dB @ 22Hz
Power Requirements: 7-12V DC or 9-12V AC @150mA
Dimensions (H x W x D): 47 x 117 x 114 mm / 1.85 x 4.6 x 4.5 inches
Weight: 0.57 Kg / 1.25 lbs
