Adam A4V Studio Monitors and Mercury-1 Room Kit Bundle

Package consists of:

• 2 x ADAM Audio A4V Active Studio Monitor, Single
• 2 x Stagg SAC3PSXM DL 3m Balanced Jack to Male XLR cable
• 1 x Universal Acoustics Vibro-Pads Lite Jnr
• 1 x Universal Acoustics Mercury-1 Room Kit, Charcoal

The Mercury-1 Room Kit included in this bundle is designed for small rooms (approx 2.5x x 2.5m, or 8ft x 8ft feet). If your room is larger than this, then contact us for a Room Kit deal that suits the dimensions of your room.

The Mercury-1 kit is also available in alternative colours (or mixed colours) - colours available are charcoal, blue, burgundy, red, white and purple. Please contact us if you would like this bundle in any of the other available colours.

Other Room Kits are also available that have different profiles - Mercury and Pluto are ridged, Neptune is flat, and Saturn is pyramidal. If you would like a quote on other room kits, then please do contact us.

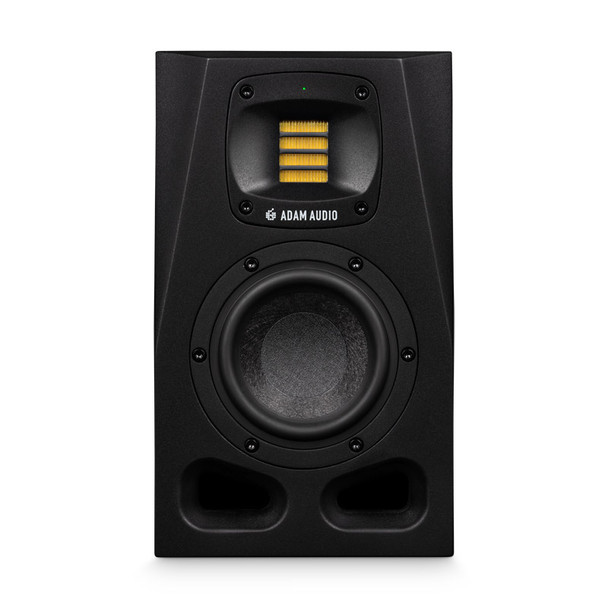

ADAM Audio A4V Active Studio Monitors

Designed for small studio spaces, short listening distances and immersive multi-speaker configurations, the A4V delivers accurate, full-bodied sound in a compact form factor. This two-way speaker incorporates a 4-inch long-throw woofer made from the same Multi-Layer Mineral (MLM) fibres as other A Series speakers plus the classic X-ART tweeter. Onboard DSP-based tuning capabilities let you easily dial in the perfect sound for your space. With a frequency range of 53 Hz to 42 kHz, the A4V can accommodate a broad spectrum of audio applications—from producing podcasts to mixing string quartets—and will fit well within immersive and 3D setups

Rotatable HPS Waveguide & X-ART Tweeter
ADAM Audio HPS (high-frequency propagation system) waveguide technology enables tweeters to disperse sound with controlled consistency, broad in the horizontal axis but tightly focused in the vertical plane. The A Series introduces a rotatable HPS waveguide design. You can shift A Series tweeters in 90-degree steps to continue to benefit from HPS waveguide technology whether you position the speakers horizontally or vertically

The A Series HPS Waveguide is made from a new glass fibre polymer compound that helps create a clear sound, free of unwanted resonance. The ADAM Audio X-ART tweeter is at the heart of the rotatable HPS waveguide. Handmade in Germany, the X-ART tweeter provides a precise transient response and reproduces the finest sonic details. This X-ART tweeter is used in every A Series speaker, providing a detailed, consistent sound across the product line

Multi-Layer Mineral Woofer
A Series woofers are constructed with a unique blend of mineral stone fibres that have been baked together to create a lightweight but highly stable material. The mineral composition, layering and geometry of each cone is specific to the driver used in each model. By combining this material with a new magnet system, A Series woofers produce high output with low distortion, delivering a clean low-end

Hybrid Amplification
The A Series combines the best of both digital and analogue worlds. The woofers are driven by Class D amplifiers that help produce linear performance while reducing distortion. These amplifiers were chosen specifically for their power and efficiency, in terms of both energy consumption and sound reproduction. Low thermal dissipation allows for a smaller heat sink, which facilitated additional investment in the exceptional power and performance of the A Series

Tweeters and midrange drivers are powered by Class AB amplifiers which offer a smooth, natural reproduction of high frequencies. Each amplifier is optimised for its working range, resulting in a fine-tuned, properly aligned speaker. To reach this point, ADAM Audio carried out extensive measurements and listening sessions, trialling countless amplifiers and amplifier components

DSP-Based Electronics
The A Series capitalizes on the transformative power of DSP-based electronics to provide greater tuning precision and better predictability than analogue-only speakers. With firmware that can be updated through an Ethernet connection, over time you can expect to integrate the latest DSP-based capabilities from ADAM Audio—including new filter types and features, plus alternative voicings

Room Adaptation
On the back panel of A Series speakers, you will find four bands of room adaptation equalization: Bass, Desk, Presence and Treble. Each band is adjustable in predefined steps, offering more than 100 tuning options to help compensate for the typical acoustic problems that arise from speaker placement

Voicings
A “Voicing” is a pre-defined sound profile of the A Series monitors. On the back panel, you will find two different selections, “UNR” and “Pure”. Here you will also find the “Ext” option which is dedicated to the extended functionality that comes with A Control via the Ethernet connection.

“UNR” or “Uniform Natural Response™” is a dynamic, natural-sounding response curve of ADAM Audio’s own design, which stems from a variety of iconic ADAM Audio legacy products, including the preceding AX Series. It lends itself to production, composition and song writing as its engaging and present sound can give you more room for creativity and flow. It is also a great option whenever you want to use your speakers simply to enjoy some good music

“Pure” is a highly accurate and neutral sounding option. This is the “flat” setting, ideal for mixing and mastering, where you really must be aware of all the details and rely on an honest representation from your speakers

The “Ext” option is dedicated to the extended functionality that comes with A Control via the Ethernet connection. Using A Control’s six-band EQ, a custom voicing and be created and pushed to the monitor

A Control (Real-Time Remote Control)
The DSP-based functionality of all A Series monitors can be controlled remotely and in real time over Ethernet using the free to download A Control software. A Control is available to download for Windows and MacOS in the MyADAM area of www.adam-audio.com for customers who have registered their A Series monitors

Once downloaded and installed, you can control multiple speakers at once, precisely adjusting equalisation and delay settings from various listening positions in your studio space. While you work, you can remotely control monitor levels if you’re far from a fader or physical interface. Remote-control capabilities are particularly useful in multi-purpose rooms allowing you to make sure that voicing, EQ, and other settings are all exactly how you want them

Room Correction & Sonarworks Integration
A Series speakers are designed to be adaptable to changing requirements, preferences, and environments. Using the A Control software, you can push advanced filters directly to an embedded platform onboard the monitors to help compensate for imperfect room acoustics. This embedded platform supports filters from industry leading third-party Sonarworks. Using Sonarworks software and a measurement mic, you can calibrate your speakers for a new room or shifting taste

Bass Reflex System, Cabinets and Mounting
The new A Series cabinets build on the heritage of ADAM Audio and the AX Series in particular. In an evolutionary design, A Series cabinets have deeper bevelling to further reduce diffraction. In addition, thicker baffle walls strengthen the cabinets and reduce internal vibrations, while a flared-port design optimises airflow and reduces port noise. All A Series speakers include an underside mounting interface, giving you the flexibility to mount them wherever you need them

Warranty
2-year standard warranty, extension to 5-year warranty upon registration in “My ADAM” User Area

Technical Specification

• Tweeter: Rotatable X-ART Tweeter + HPS Waveguide
• Woofer: 1x 4" MLM woofer with 25 mm / 1” voice coil
• Frequency response @ -6dB: 53 Hz - 42 kHz
• Maximum SPL per speaker at 1 m: 100 dB
• AD convertor: 24-bit
• Internal sample rate: 96 kHz
• Amplifier power RMS: 110 W (woofer) + 20 W (tweeter)
• Crossover frequency: 3.0 kHz
• Power rating: 300 W max
• Analog Input (balanced): 1x XLR
• Analog Input (unbalanced): 1x RCA
• Net Weight: 5.8 kg (12 lbs 13 oz)
• Gross Weight: 7.3 kg (16 lbs 1 oz)
• Cabinet Height x Width x Depth: 268 x 158 x 220 mm (10 ½" x 6 ¼" x 8 5/8“)
• Box Dimensions: 390 x 285 x 345 mm (15 3/8" x 11 ¼" x 13 5/8")
• AC Input Voltage: 100 – 240 V, 50/60 Hz

Universal Acoustics Mercury-1 Room Kit, Charcoal

Universal Acoustics Solar System Mercury 1 is a specially configured acoustic treatment kit. It is designed to provide realistic and affordable acoustic absorption and reverberation control within most types of rooms and spaces. Examples include Project Studios, Post Production facilities, Home Theatres, Home Studios, Rehearsal Rooms, Boardrooms, Language Labs, and Reception areas - in fact virtually any environment that would benefit from professionally designed sound control.Solar System Acoustic Treatment Kit - Charcoal

Universal Acoustics Solar Systems are specially configured acoustic treatment kits. They are designed to provide realistic and affordable acoustic absorption and reverberation control within most types of rooms and spaces. Examples include Project Studios, Post Production facilities, Home Theatres, Home Studios, Rehearsal Rooms, Boardrooms, Language Labs, and Reception areas - in fact virtually any environment that would benefit from professionally designed sound control.

Kit Includes

• 20 x Mercury Wedges 50mm-300x300
• 2 x Mercury 300 Bass Traps
• 1 x Space Mist 500ml
• 1 x Install Guide

Universal Acoustics Vibro-Pads Lite Jnr

Universal Acoustics Vibro-Pads Lite Jnr are specially formulated anti-compression foam pads designed to improve the accuracy of your nearfield monitors by isolating and de-coupling them from whatever surface they are resting on. Each set includes 4 pads – measuring 75mm wide x 300mm deep with a separate removable adjuster panel to provide a level surface or an angled slope of 5o to 10o, up or down according to orientation with safe support (subject to cabinet weight and dimensions) for a variety of monitors and other typical studio items such as a laptop, keyboard, DVD or turntable.

Your studio monitors are the most critical components for audio evaluation so however configured we guarantee your recordings will sound more accurate once vibration and resonance are removed. Universal Acoustics Vibro-Pads Lite Jnr pads are manufactured from 35 Kgs M3 density charcoal foam for optimum acoustic performance, demonstrating resilience to compression resulting in improved listening quality within your studio environment. (all specifications subject to change without notice)

Each base pad includes it’s own pre-cut levelling wedge adjuster which in standard position will provide a level surface. Alternatively the levelling wedge adjuster can be removed to provide either a 5o or 10o slope angled up or down according to which way round the base pad is resting.

Whichever position Vibro-Pads Lite are utilised we guarantee that your monitors will provide a noticeable sonic improvement and your recordings will sound more accurate and defined once the vibration and resonance has been removed, and because your Studio Monitors are the most critical components to evaluate your recordings their full performance can only be truly revealed once vibration has been removed and total isolation has been achieved.

Manufactured in dark charcoal colour from a specially selected 65Kgs/3m density High Load Bearing (HLB) Hard foam, Vibro-Pads Lite will perform over a long life demonstrating true resilience to compression and will not fatigue during use resulting in years of improved listening quality within your studio or private audio environment.

Kit includes - 4 X 75mm x 300mm pads - Angled wedge adjusters

Stagg SAC3PSXM DL 3m Balanced Jack to Male XLR cable

The Stagg SAC3PSXM cable is 3 metres/10 foot in length with metal plugs.
